System ADAS Car Surveillance Camera Wide Angle Infrared Night Vision

Product Categories
Shenzhen Firecore Technology Co., Ltd.
Contact Now

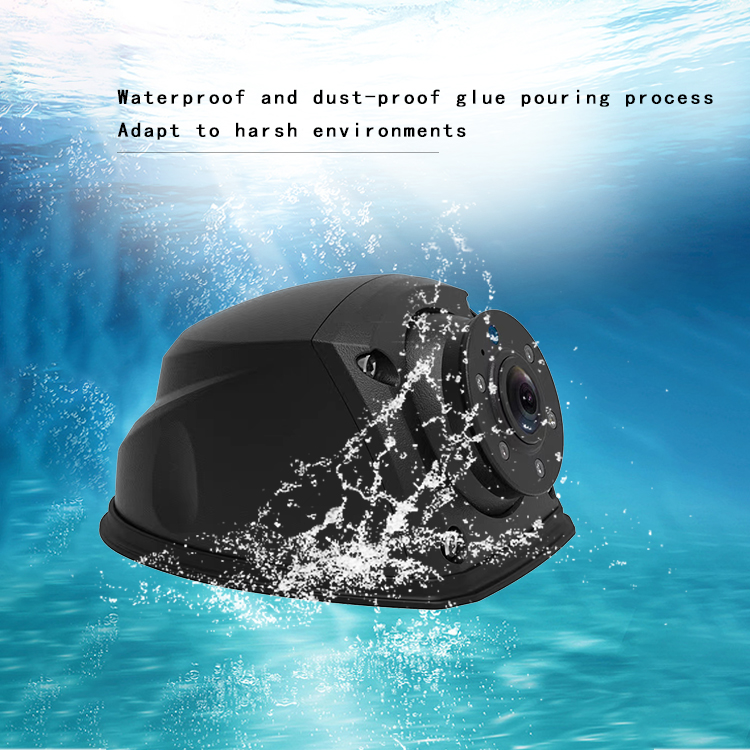

System ADAS Car Surveillance Camera Wide Angle Infrared Night Vision

  • 1
  • 2
  • 3

Brand Name : Huoxin Technology

Model Number : HX-799

Place of Origin : Guangdong, China

MOQ : 2

Price : Negotiable

Supply Ability : 1000

Delivery Time : 15-30

Packaging Details : Each camera shall be packed in a transparent moisture-proof bag and placed in a small box. The top and bottom of the box shall be protected with pearl wool. The box shall be packed and then be packed/sealed with a large carton

Payment Terms : T/T

model : HX-799

supply voltage : 12-24V

weight : 0.25

signal system : PAL

Imaging element : 2M pixel CMOS

resolution ratio : 1080P

Contact Now

Side view camera, million high-definition wide-angle side view camera, truck infrared night vision side view monitoring

The in car camera is the core sensing device of ADAS (Advanced Driver Assistance System) . Currently global intelligent driving has ushered in a window of transition from L2 to L3/L4 and the number of cameras installed will increase from 3-8 to 8-12 . According to CINNO Research the number of cameras installed in passenger cars in the Chinese market will exceed 100 million in 2025 and the compound annual growth rate from 2021 to 2025 will reach CAGR 21%.
At present in car cameras are mainly divided into front view surround view rear view side view and built-in cameras .

The front view camera is mainly installed on the front windshield, usually equipped with 1 - 4 monocular/binocular cameras used to achieve functions such as front vehicle collision warning (FCW) lane departure warning (LDW) traffic sign recognition (TSR) pedestrian collision warning (PCW) etc.

signal pattern NTSC PAL
camera lens 2. 1 2. 8 3. 6
pixel 200/1080P 130/960P
Low illumination 0.0001 Iux-O Lux Infrared start
synchronous mode Internal synchronization
Signal to Noise Ratio >=46dB
dynamic range 72d8(HDR)
Electronic shutter 1/60 (PAL. 1/50)-1/100000s
automatic balancing open (ON/OFF)
gain control open (ON/OFF)
Back light supplement open(HLC High brightness/BLC)
Auto Iris image(Video/DC)
power supply DC12V90mA(When infrared is turned on250mA)
weight 0. 00g
Shell material Aluminum alloy/stainless steel
interface AV/USB/BNC/Aircraft Head interface

System ADAS Car Surveillance Camera Wide Angle Infrared Night VisionSystem ADAS Car Surveillance Camera Wide Angle Infrared Night Vision
